Lifepo4 Lithium Iron Phosphate Battery 72V 50Ah For Ebike Motorcycle RV Golf Cart

2023-06-01 02:15

spesifikasjon

Nominell spenning	72V
Nominell kapasitet	50Ah
Intern motstand	≤220mΩ
Syklusliv	2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod
End of charge Voltage	14.6V
End of charge Current	100mA
Max.Continuous charge current	50A
Ladningsmetode	0.2C (0.5A) CC/CV
End of discharge Voltage	9.2V
Max. Pluse Discharge Current	50A/10S
Charge Temp	0 ~ 45 ℃
Discharge Temp	-10~55℃
Storage Temp	-10 ~ 45 ℃
Dimension(D×W×H)	332170220mm
Vekt	≤20Kg
Innebygd automatisk batterisikringssystem	Ja

Charge plugs and Discharge connectors optional

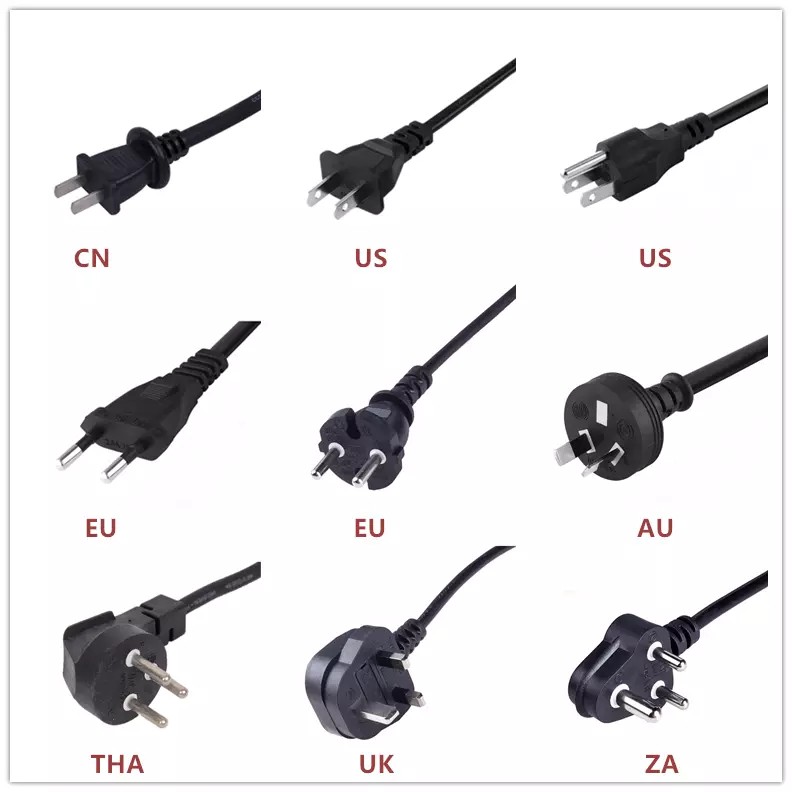

1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without request

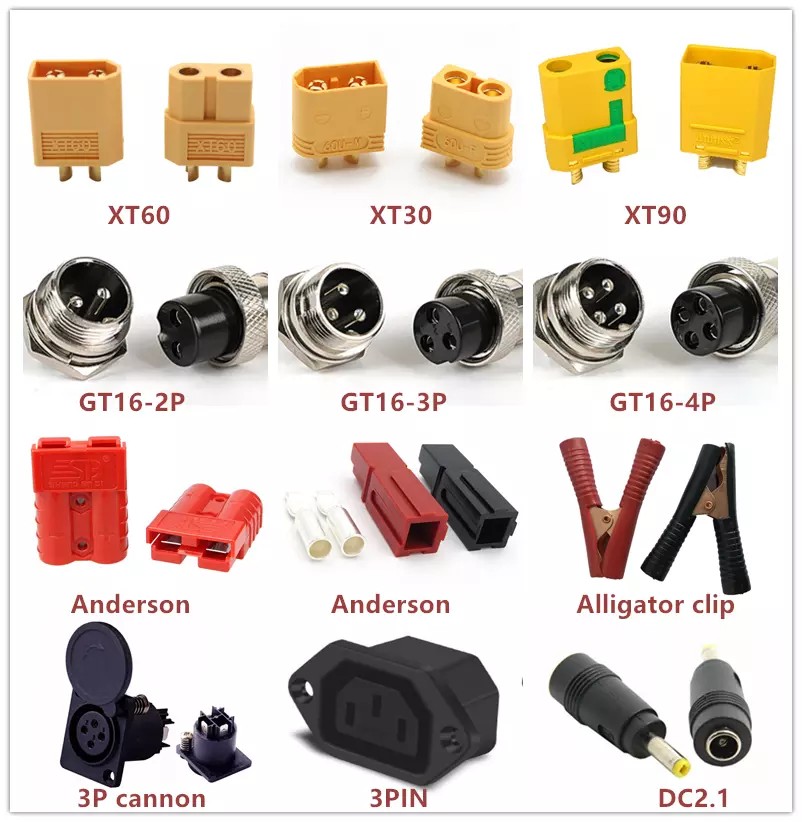

2.Discharge Connector: There are 12 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.

Egenskaper

1.Lighter weight, smaller size

2.High temperature performance

3.Extremely safe, no explosion, no fire under collision

4.Streng motstand mot overutladning og oppbevaring av lading

5.Strong charging acceptance and quick-charging capability

6.Maintenance-free and no acid or water for maintenance in usage

7.Large capability and long life for all high power output applications

8.Environmentally friendly non-toxic, non-contaminating, no rare metal.

9.Low self-discharge and good discharge performance at low temperature

10.Excellent large current discharge performance especially in startup and climbing

OEM

We also can customize the battery 12v/24v/36v/48v/72v 100h,120ah,200ah,300ah,400ah,800ah with metal box. The size and shape are flexible according to your given size. And if necessary, we can offer a remote LCD display to monitor the battery status.
To welcome the world cooperation we accept OEM with your logo design.

applikasjon

applikasjoner

* Electric Vehicles for Commercial and Commuting * Electric Scooter * Golf Cart/ troller * Electric Mobility * Electric Motorcycle * Electric Bicycle * Electric Wheelchair * Electric Power Mower * RV (Recreational Vehicle) * AGV (Automatic Guided Vehicle) /AGV cars/ AGV robots/ Self-guided

Fabrikken vår

FAQ

1,Q: What's the main product in AIN?
A: Rechargeable battery. NiMH, Li-ion, Lipo battery and power battery pack.
2, Q: Hva er overbelastning?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.
3, Q: Hva er over utslipp?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance.
4. Spørsmål: Kan jeg få en prøveordre?
A: Ja, vi aksepterer prøveordre for å teste og sjekke kvalitet. Batterier kan lages etter behov.
5. Spørsmål: Har du MOQ-grense?
A: Ja, vi har MOQ-grense for masseproduksjon, men det avhenger av batterimodell. Kontakt oss for mer informasjon.
6. Spørsmål: Hva med ledetid?
Svar: Prøver tar 5-7 virkedager. Masseproduksjon vil ta 25-30 dager. Det avhenger av mengde.
7. Spørsmål: Hva med levering og leveringstid?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. Spørsmål: Hva med service etter salg?
A: We will offer you 2 years guarantee. If there are any problems, please inform us, we will offer you positive solutions.
