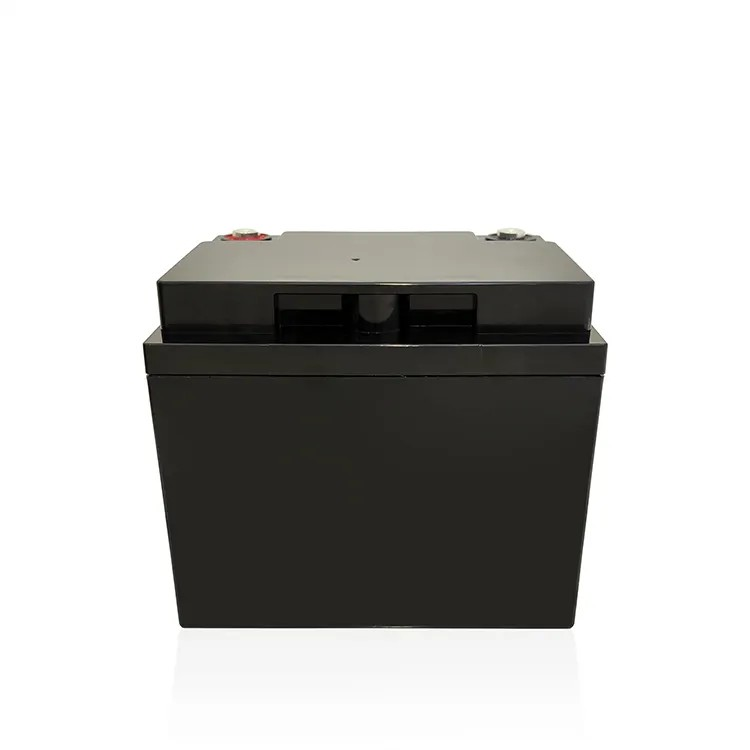

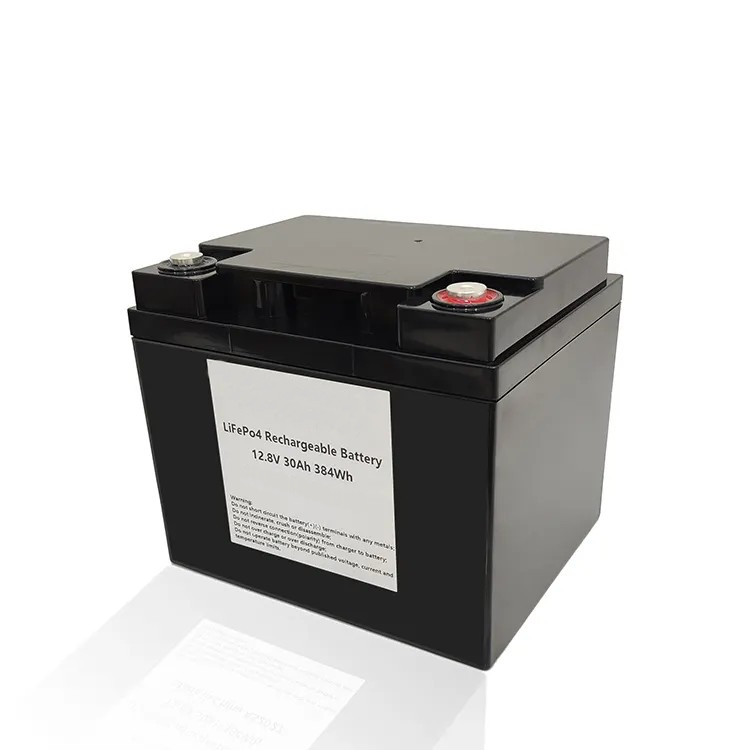

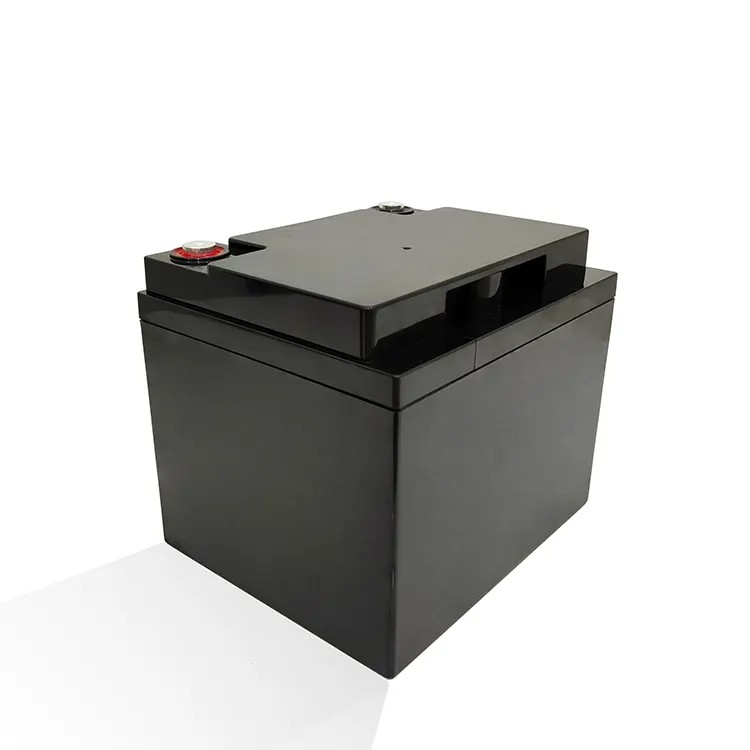

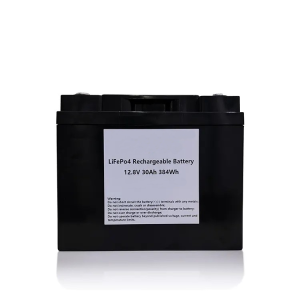

LiFePO4 Battery 12.8V 30Ah

2025-01-02 02:33

spesifikasjon

Elektriske egenskaper	Nominell spenning	12.8V
	Nominell kapasitet	30Ah @0.2C
	Energi	384Wh
	Intern motstand	≤55mΩ
	Syklusliv	>2000 cycles @ 0.2c charge/ discharge at 100%DOD,End of life 70%
	Måneder Selvutskrivning	≤3,5% per måned ved 25 ℃
Standard kostnad	Ladespenning	14,6 ± 0,2V
	Charge Mode ( CC/CV)	Ved 0 ℃ ~ 45 ℃ temperatur, ladet til 14,6v ved konstant strøm på 0,2C5A, og deretter endret kontinuerlig med konstant spenning på 14,6v til strømmen ikke var mer enn 0,02C5A
	Ladestrøm	5A
	Maks ladestrøm	10A
Standard utslipp	Utslippstrøm	30A
	Maks kontinuerlig strøm	30A
	Max Plus Current	60A (<3S)
	Discharge Cut-off  Voltage	10.0V
Miljø	Ladetemperatur	0 ℃ til 45 ℃
	Utslippstemperatur	-20 ℃ til 60 ℃
	Lager temperatur	0 ℃ til 45 ℃
	Motstand mot vannstøv	IP55
Mekanisk	Cell& Method	IFR32700 N34,4S5P
	Plastikk eske	ABS
	Dimensjon (L*W*H*TH)	195*130*156*167 mm
	Vekt	Ca. 4,9 kg
	Terminal	M6

applikasjon

1) Lagring av solenergi, hjemmelagring, E-kjøretøyprodukter.

2)Widely applied in solar street light,wind energy storage ,UPS and telecommunication power supply, photovoltaic power station etc.

Fabrikken vår

Hvorfor velge oss

【High-quality battery cell】: Adopts high-quality A-grade battery cell, full capacity without false labeling to support the test

【Competitive price】: 500,000+ pieces produced annually, branded battery source production factory with competitive price

【Wide range of products】: Lead acid replacement battery, Rack mount battery, Wall-mounted energy storage, Stacked batteries....



Pakking og frakt

FAQ

Q1: Kan jeg få prøver å teste? Og hva er ledetid for prøveordre?
A1: Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock
product,2~5 days; For customized product,3~7days depends on requirements.

Q2: Hva er garantien for produktene?
A2: 1~10 years,Since our product range is wide,Minimum 12v 30Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.

Spørsmål 3: Hva er bedriftens fordel?
A3: We're direct factory,have very rich experience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.

Q4: Godtar du OEM / ODM?
A4: Yes,welcome!

Q5: Hva er ledetiden for masseordren?
A5: Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.

Spørsmål 6: Hva er betalingsbetingelsene?
A6: Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.

Q7: Hva slags sertifikat kan tilby?
A7: CE,RoHS,UN38.3,MSDS,etc,If need IEC,PSE and others, please consult with us.
