spesifikasjon
| Supplier | ALL IN ONE Battery Technology Co Ltd. |
| Modell | CATL LF228 230Ah LiFePO4 3.2V Battery cell |
| Ekte kapasitet | Tested over 230Ah |
| Nominell spenning | 3.2v |
| Maks utladningsstrøm | 1C/ 230A |
| Maks ladespenning | 3.65V |
| AC Impedans motstand | ≤0,5mΩ |
| Ladetemperatur | 0-60℃ |
| Utladningstemperatur | -30-60 ℃ |
| Syklusliv | 6000 times SOC 80% |
| Vekt | 4.2kg |

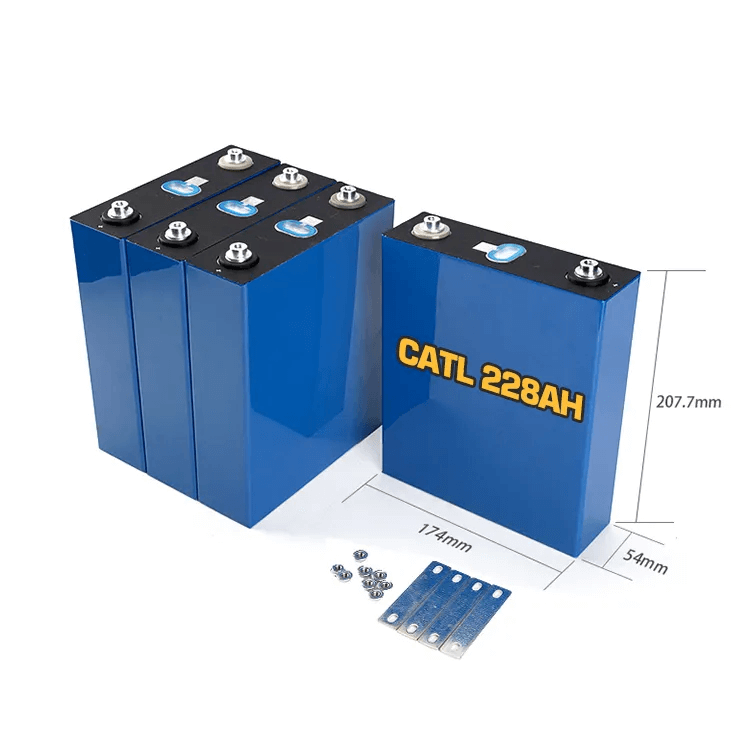

| Mål (L * B * H) | 174*54*208mm |
| applikasjoner | Solar Energy Storage Systems,automotive,Home storage and organization,New Energy Passenger Car,New Energy Bus,New Energy Professional Car,New Energy Construction,New Energy Ship,Telecom ESS,Grid ESS,Energy Storage on Power Generation,Energy Storage on Power Consumption,off-grid and island/isolate systems,UPS backup power |
1. Høy kapasitet og stabil utladningsspenning
2. Lengre arbeidstid med høy ytelse
3. Lett vekt med liten størrelse
4. Fremragende utladningsegenskaper og liten indre motstand
5. Ingen minneeffekt, god utladningsevne og høy belastning og motstå høy temperatur
6. Forurensningsfritt for miljøbeskyttelse
7. 100% autentisk oppladbart li-ion oppladbart batteri
8. Bulid i antisplosjonsbeskyttelse og kretsbeskyttelse
Merk

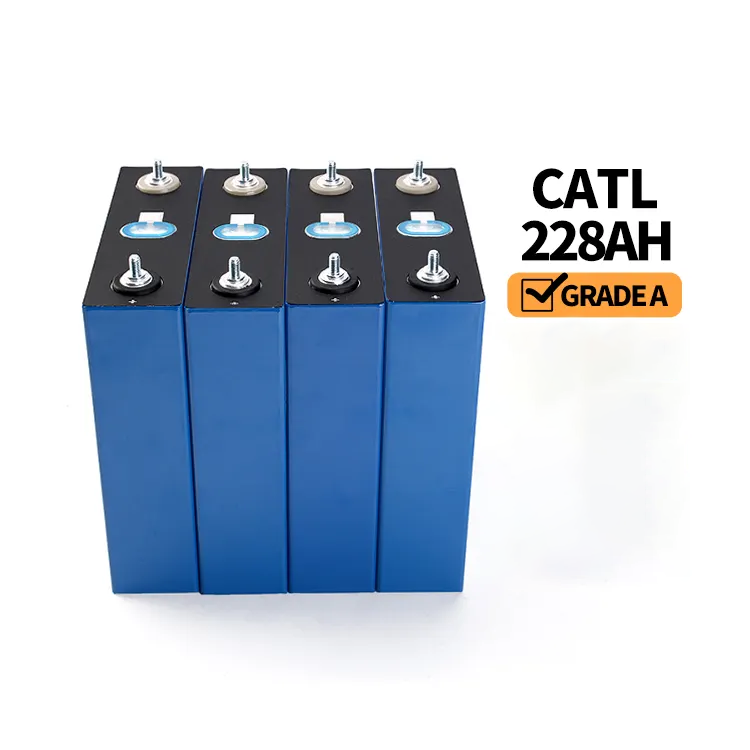

1.This item is Original Grade A CATL 230Ah LiFePO4 cell, the QR code is intact, Grade A+, Brand new.
2. After our test, the maximum discharge capacity can reach 240Ah.
3.The price come with Free Bus bars and Bolts. one battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts）If need more please contact us online.Thank you!
4. One battery with one insulation battery sheet
5. The bus bars size: 75*20*2mm(cooper plated with nickel) Screw size: M6

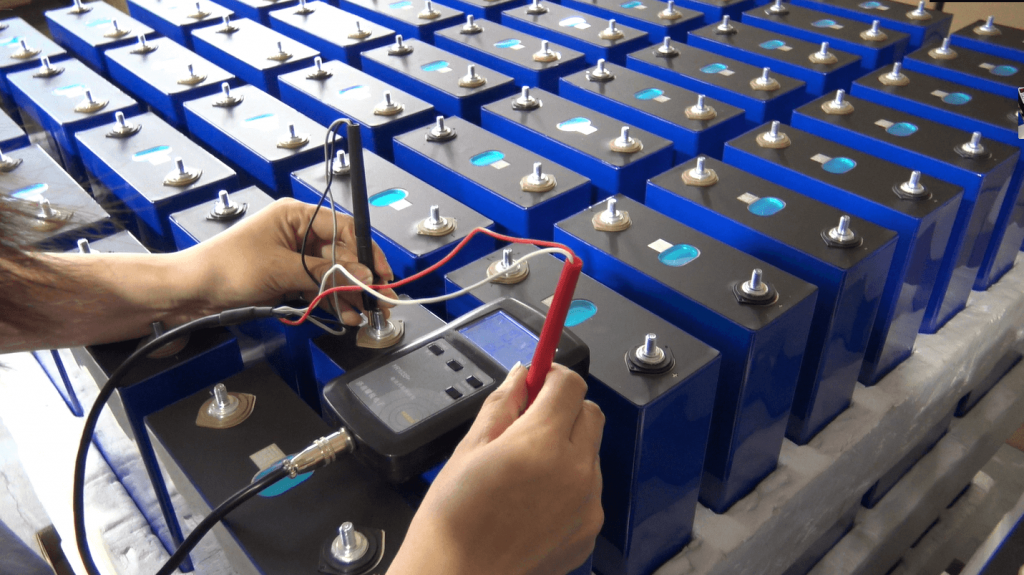

6.We tested every battery cell's Voltage ,Internal resistance before shipping out from China.
Important & Warmly Reminder
Batteries should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃.
Avoiding contact with corrosive substances and staying away from fire and heat source. The battery should be charged and discharged every 6 months.The SOC for storage is between 30% ~ 50%
1. When the battery is charged and discharged, the conditions for monitoring and protecting the battery voltage, current and temperature shall be ensured.
2. Please keep the battery away from the heat source, fire source and other corrosive environments such as water,heating, strong acid and strong alkali.
3. Do not short circuit the battery or install it with incorrect polarity at any time，otherwise it can cause serious damage to the battery and cause danger.
4. Do not mix batteries of different models or manufacturers.
5. Do not use external force to make the battery fall, impact or puncture. Do not disassemble the battery or change the external structure.
6. When the battery is not used for a long time, please keep the battery in the state of 30%-50% SOC, and avoid the environment of strong direct sunlight or high temperature and humidity.
7. When operating the battery, it is necessary to wear rubber gloves and other protective devices.
8. In case of leakage, smoke or damage of battery, please stop using immediately.
9. DIY battery pack must be getting the cells balanced before assembly.
Disse situasjonene gir ikke retur eller refusjon
*After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
*For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.
Tip: These products are batteries only, without protection board,you need to purchase a match one! You can check our shop and search BMS.
Kurér og logistikk
In addition, because the battery is prohibited product, many courier and logistics are unable to send, the arrival will indeed be slower, so please wait patiently after place an order.
applikasjon

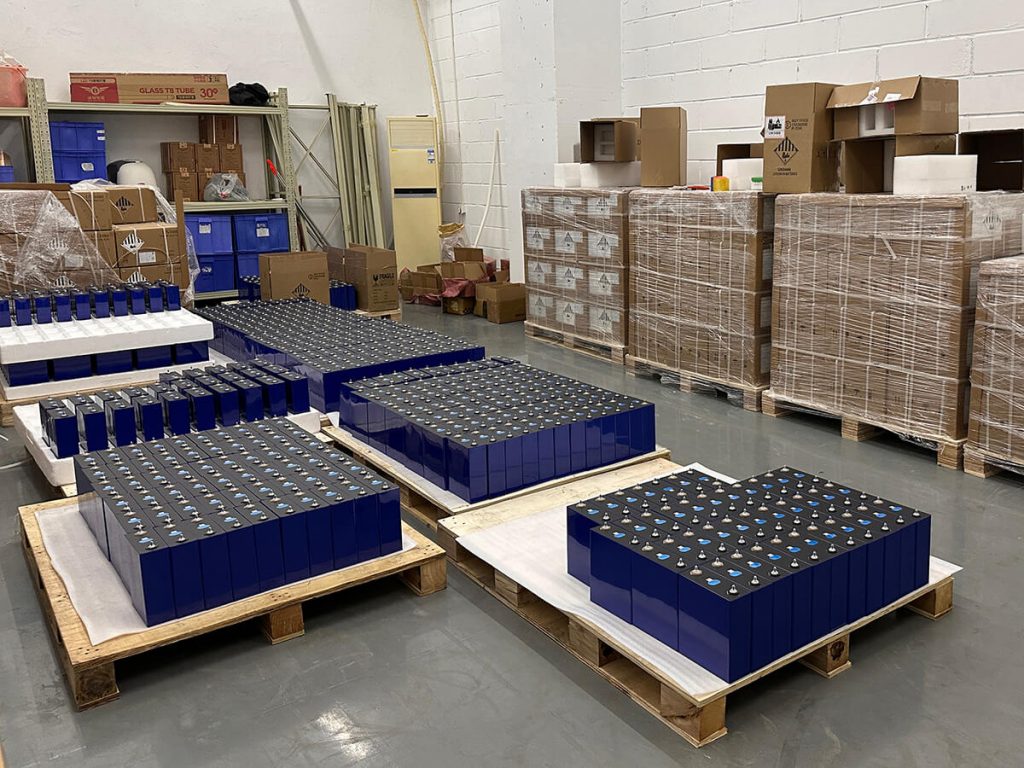

Fabrikken vår
1. We are a supplier with 10 years' experiences.All our items come with high quality and good after-sale service.
3. Stabil kvalitet - Kommer fra overlegen materialleverandør og perfekt kvalitetskontrollsystem.
4. Konkurransedyktig pris enn noen andre leverandører.
5. 7/24 service for deg, alt spørsmålet vil bli behandlet innen 24 timer.
Pakking og frakt
A: Ja, vi ønsker velkomstprøveordre for å teste og sjekke kvalitet. Blandede prøver er akseptable.Q2. Hva med ledetiden?
A: Prøven trenger 3-5 dager, masseproduksjonstiden trenger 1-2 uker for ordremengde mer enn
Q3. Har du noen MOQ-grense for litiumbatteri?
A: Lav MOQ, 1 stk for prøvesjekk er tilgjengelig
Q4. Hvordan sender du varene og hvor lang tid tar det å komme?
A: Vi sender vanligvis med DHL, UPS, FedEx eller TNT. Det tar vanligvis 3-5 dager å ankomme. Flyselskap og sjøfart også valgfritt.
Q5. Hvordan fortsette en ordre på litiumionbatteri?
A: Gi oss beskjed om dine krav eller søknad.
Dernest siterer vi i henhold til dine krav eller våre forslag.
For det tredje bekrefter kunden prøvene og plasserer innskudd for formell bestilling.
For det fjerde arrangerer vi produksjonen.
Q6. Kan vi signere en taushetsavtale hvis vi ønsker å bygge et langsiktig forretningsforhold?
A: Visst, vi respekterer kundenes krav, vil gi deg mer fordel.
Q7: Tilbyr du garanti for produktene?
A: Ja, vi tilbyr 12 måneders garanti på våre produkter.
Q8: Godtar du OEM / ODM?
A: Visst, den tilpassede ordren er tilgjengelig, med vår glede å tjene deg.
A: usually it takes 5 hours with 20A standard charger.
