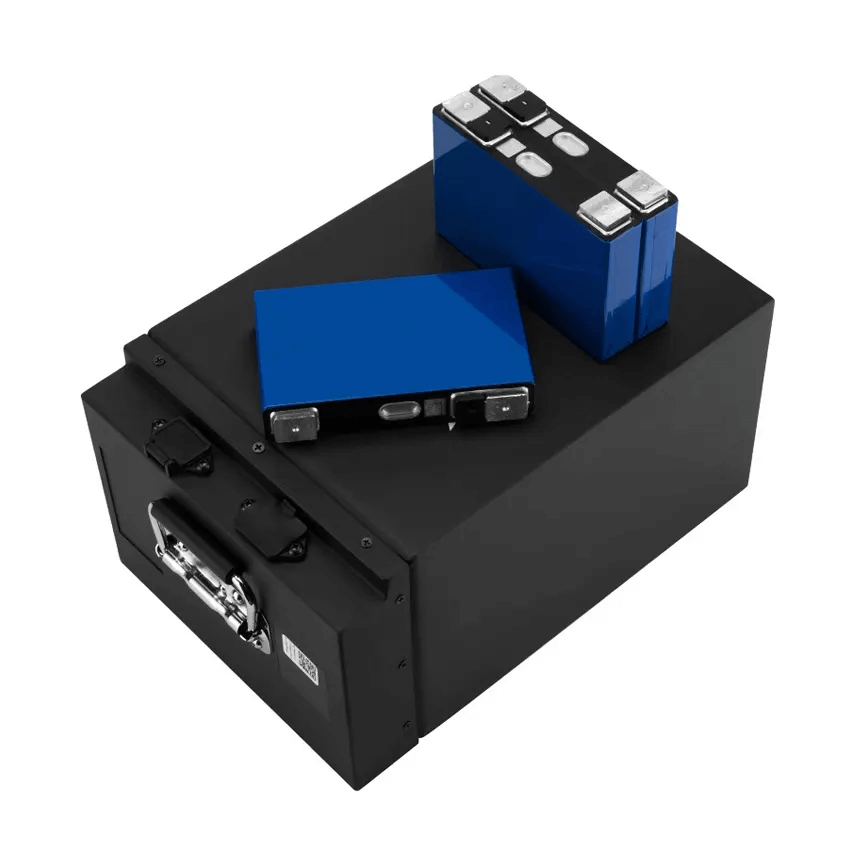

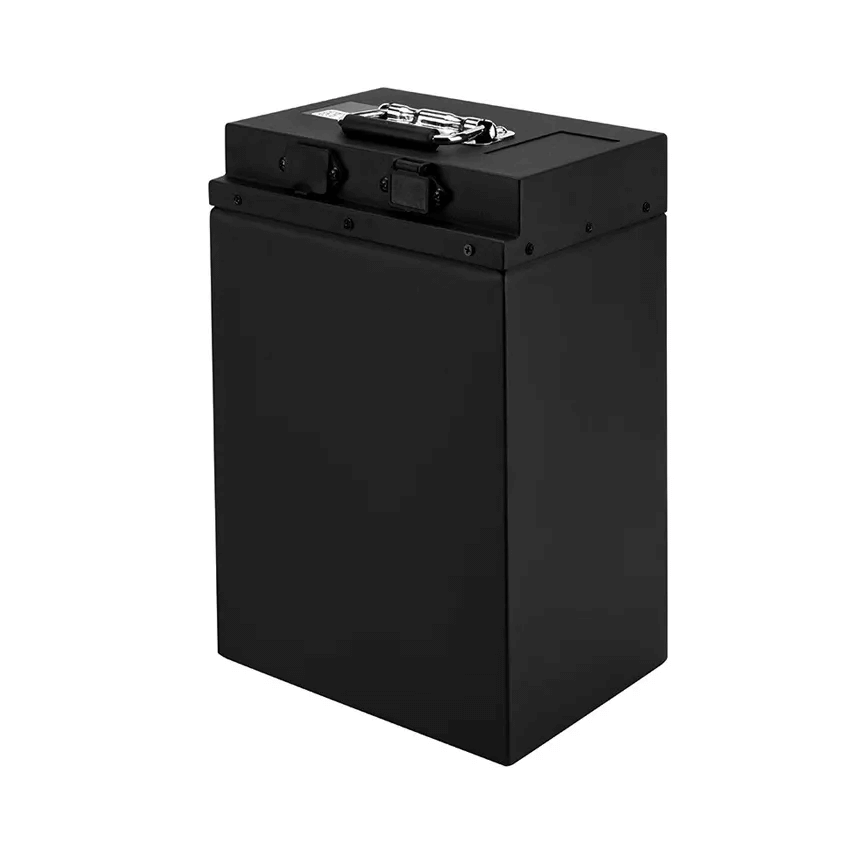

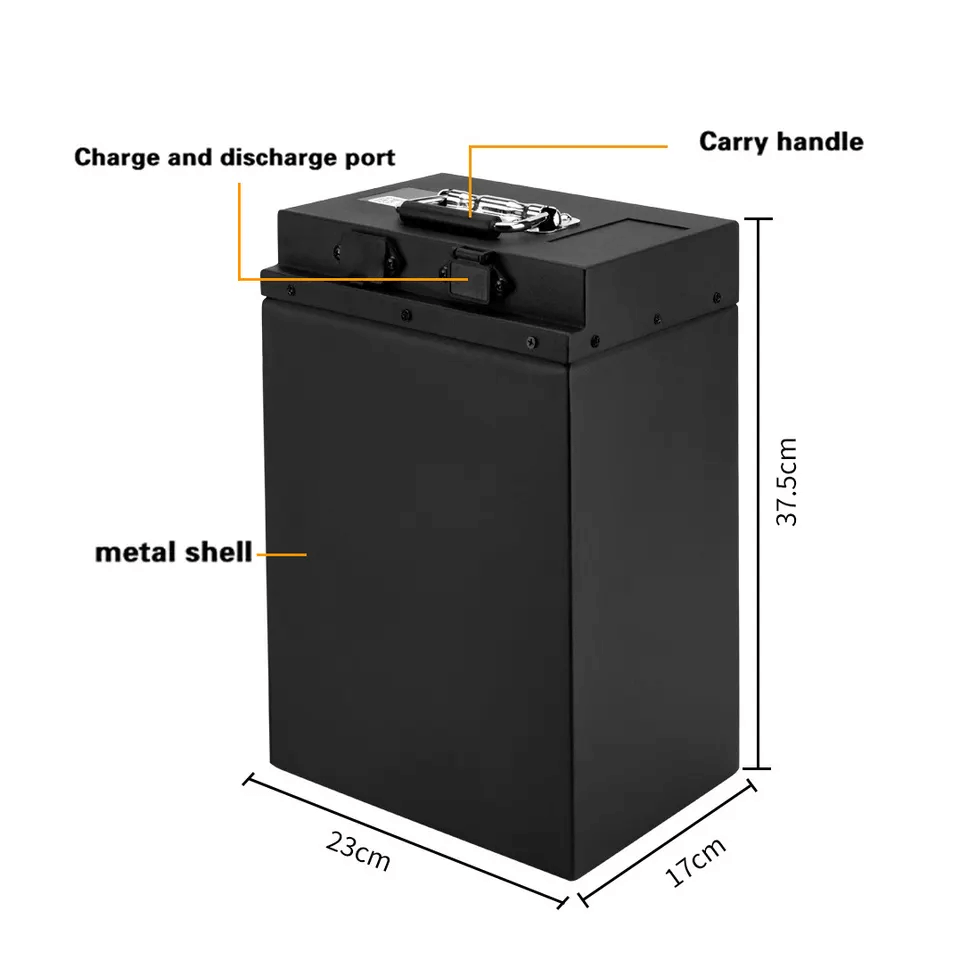

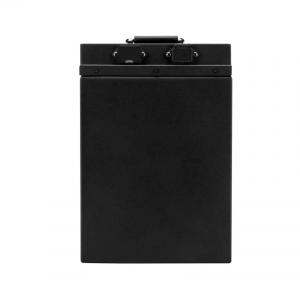

Electric Vehicle Battery 60v 40ah 50ah 65ah Battery Pack

2023-08-24 08:06

spesifikasjon

Funksjonsparameter
Nominell Battery Energy	3900wh
Nominell Kapasitet	65Ah
Nominell Spenning	60V
Intern motstand	≤22mΩ
Syklusliv	>6000
Måneder selvutslipp	<3%
Ladedata
DC Normal ladespenning	54,75±1Vdc
Lademodus	0,2C til 54,75V, deretter 54,75V, ladestrøm til 0,02C (CC/CV)
Anbefalt ladestrøm	≤50A
Tillatt Maks. Ladestrøm	50 Adc
Lad avkoblingsspenning	54,75±1Vdc
Utladningsdata
Kontinuerlig utladningsstrøm	50A
Tillatt Maks. utladningsstrøm	100A (alternativ: 100Adc)
Rangering av DC-utladningsspenning	37,5V-54,75Vdc
Arbeidsforhold
Ladetemperatur	0℃ til 45℃ (32℉ til 113℉) @60±25 % relativ fuktighet
Utslippstemperatur	-20℃ til 60℃ (-4℉ til 140℉) @60±25 % relativ fuktighet
Lager temperatur	0℃ til 40℃ (32℉ til 104℉) @60±25 % relativ fuktighet
Kapslingsbeskyttelsesnivå	IP67

Egenskaper

1.Rechargeable battery
2.Use of Iron(Fe) as a cathode material
3.Higher discharge current
4.Do not explode under extreme conditions and weight less

Fordeler

1.Extremely high rate capability
2.Safe lithium battery
3.Good storage characteristics
4.Good high temp performance
5.Long cycle life to 2000 times
6.High capacity & light weight
7.Environmentally friendly
8.No memory effect

We can provide you with customized services

Customized 7.4V-12V-24V-36V-48V-52V-60V-72V...LITHIUM BATTERY PACK

The capacity and dimension can customize according to your request:

1. Tilpasset batteristørrelse og skallmateriale

2.Tilpasset BMS lade- og utladningsstrøm

3. Tilpasset tilkoblingsplugg og stikkontakt, koblingsledning

AIN Litiumbatteripakk Hovedapplikasjoner
Elektriske fremdriftsapplikasjoner	motor start batteri; Langsom hastighet bil; intellektuelle roboter; elektrisk sykkel / motorsykkel / scooter; golfvogn / vogner / sightseeingbil; elektroverktøy.
Energilagring	solenergi og vindkraft system; by på / av rutenett; samfunn og familie, bobil, bobiler.
Backup-system og UPS	Telecommute base, CATV-system, computer server center, medical instrument, military equipment.
Andre applikasjoner	sikkerhet og elektronikk; mobil POS, gruvedrift / fakkel / LED-lys / nødlys.

Vårt selskap

WHY CHOOSE US?
1.Our company has 13 years experience in battery R&D,producing and the overseas marketing.
2.Flexible customizing and Manufacturing
3.6,000,000Ah monthly production capacity
4.Each process for making battery were under strict management and control,all of the battery were under full inspection before delivery.
5.With professional R&D team, experienced workers and advanced requirements, we are determined to provide you high-quality battery.

6.Support prompt shipment and sample quality products,track the cargo in time after delivery.More than one year Guarantee,we will give instruction for how to use our products.



FAQ

Q: What is your warranty?
A: We guarantee the quality before the item is shipped. The warranty will be offered based on different type of battery. Any damages caused by improper use are not covered by our warranty.

Q: What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.

Q: Are your factory or trading company?
A: We are professional lithium-ion rechargeable batteries manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients around globe.
