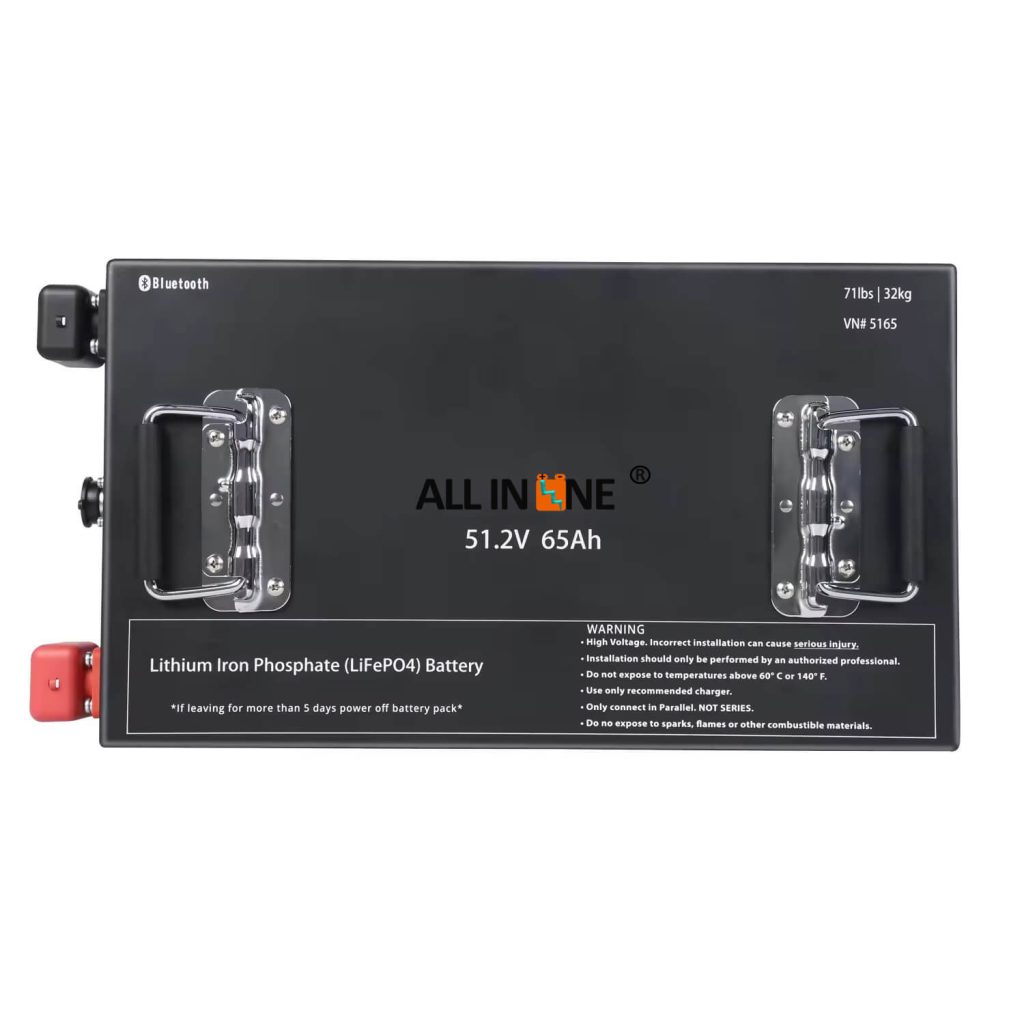

51.2v 65Ah golf cart lifepo4 lithium ion battery pack deep cycle IP67

2024-06-28 03:25

spesifikasjon

Modell	AIN51105W	AIN51105S	AIN5165S	AIN51150S	AIN76105S
Nominell spenning	51.2V	51.2V	51.2V	51.2V	76.8V
Nominell kapasitet	105Ah	105Ah	65Ah	150Ah	105Ah
Rated Energy	5370Wh	5370Wh	3320Wh	7680Wh	5370Wh
Maximum Charge Voltage	58.4V	58.4V	58.4V	58.4V	87,6V
Maksimal ladestrøm	100A	100A	60A	150A	100A
Maksimal kontinuerlig utladningsstrøm	150A	150A	130A	200A	200A
Maximum Peak Discharge Current (30 seconds)	300A	300A	250A	300A	300A
Lad ut spenningen	43,2V	43,2V	43,2V	43,2V	43,2V
Driving Mileage	65-80km	65-80km	40-60km	90-120km	100-130km
Ladetemperatur	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃
Utslippstemperatur	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃
Cycle Life (25℃, 0.5C, 100% DOD)	>6000	>6000	>6000	>6000	>6000
Terminals	M8 Nut	M8 Nut	M8 Nut	M8 Nut	M8 Nut
Beskyttelsesnivå	IP67	IP65	IP65	IP65	IP65
Dimensions(mm)	547*334*245	457*298*253	465*243*228	675*325*260	674*338*275
Vekt	48.3kg	49kg	32 kg	71kg	72.8kg
Communication Protocol	KAN/RS485	RS485	RS485	KAN/RS485	KAN/RS485



Nøkkelegenskaper

1, PET is able to bear 850kg, avoid bulging

2, CCS vehicle-grade craft,integrated wires

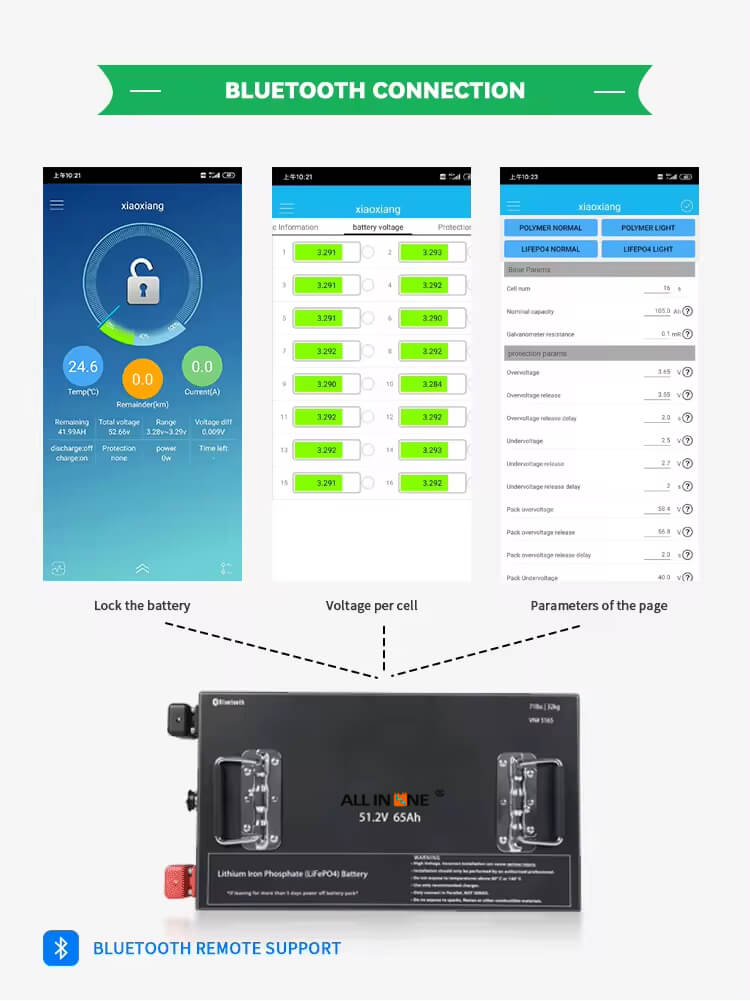

3, Support RS485/CAN/Bluetooth etc

4, 3-4mm metal plates at both side

5, Reserve 1mm width for potential bulging

6, Distributed sampling system to solve sampling impedance problem.

Vi lover
1.Alle produkter vil være testet 100% før forsendelse for å sikre at produktet ikke har kvalitetsproblemer.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.



applikasjon

Fabrikken vår

Pakking og frakt

FAQ

Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.

Q2: Gir du ettersalgsservice?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.

Q3 Hva er bedriftens fordel?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service

Q4: Godtar du OEM / ODM?
A4: Yes, it is available.

Q5: What is your lead time for mass production?
A5: Generelt sett, ca 25-30 dager, avhengig av forskjellige varer etter å ha fått forskuddsbetaling og bekreftelse om prøvene.

Q6:Are your battery real capacity?
A6: Alle våre battericeller med klasse A, 100% ny og reell kapasitet.

Q7: Er du en fabrikk eller et handelsselskap?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

Q8: Hva slags sertifikater har du?
A8: Vi kan tilby CE, ROHS, FCC, IEC62133, MSDS, UN38.3 hvis bestillingsantallet ditt er stort.
