48v 100ah 200ah wholesale home hybrid power wall mounted storage rechargeable solar lithium lifepo4 battery pack

2023-08-18 06:01

spesifikasjon

Modell nr	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
Spenning	48/51.2V	48/51.2V	48/51.2V
Kapasitet	100Ah	150Ah	200Ah
Energi	5.12kwh	7.68kwh	10.24kwh

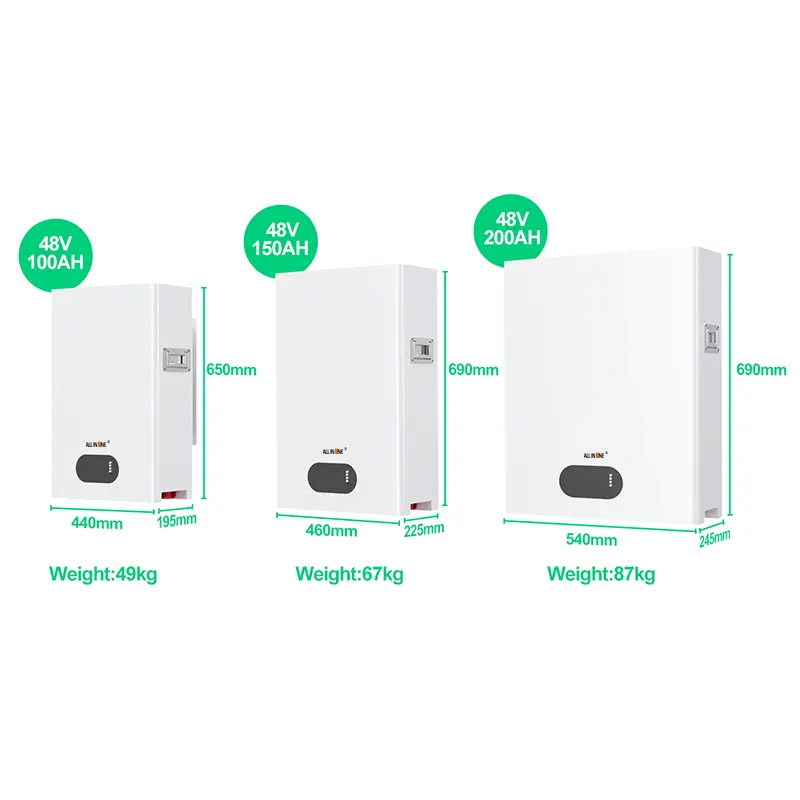

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
Vekt	49kg	67kg	87kg
Grunnleggende parametere
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
Driftstemperatur	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
Lager temperatur	0°C til 45°C @60+/-25 % relativ fuktighet	0°C til 45°C @60+/-25 % relativ fuktighet	0°C til 45°C @60+/-25 % relativ fuktighet
Litium batteri standard	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
Maks kraft	5120W	7680W	10240W

Fabrikken vår

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

FAQ

Spørsmål: Er du handelsselskap eller produsent?
A: We are ALL IN ONE original factory.

Q: Kan jeg få prøver å teste? Og hva er ledetid for prøveordre?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

Spørsmål: Gir du ettersalgsservice?
A: Ja, garantien er 12 måneder, hvis noen kvalitetsproblemer på vår side i denne perioden, kan vi sende en ny som erstatning.

Spørsmål: Godtar du OEM / ODM?
A: Ja, det er tilgjengelig.

Spørsmål: Har du batterikapasitet?
A: Alle våre battericeller med klasse A, 100% ny og reell kapasitet.

Spørsmål: Hva slags sertifikater har du?
A: Vi kan tilby CE, ROHS, FCC, IEC62133, MSDS, UN38.3 hvis bestillingsmengden er stort.

Q: Har du MOQ?
A: Ingen begrensninger. Liten bestilling også velkommen. Mer mengde har bedre pris, vi vil sjekke den beste prisen for deg.

Spørsmål: Hva er betalingsperioden din?
A: Vi adopterer T / T, Paypal, Alibaba betaling måte og så videre.

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
